A digital microscope industrial inspection camera is useful when it turns an existing optical inspection into a repeatable, shared image record. Select it around the smallest defect, the microscope port, lighting and the file workflow—not resolution alone. If a dimension will enter a QC report, calibrate and verify the exact optical configuration under your own quality procedure first.

For a small electronics or precision-manufacturing team, the practical pain is usually evidence. A solder bridge, burr or surface mark is visible at the bench, yet the customer complaint or first-article review needs a clear image that another person can recognise later. The camera is one component in that evidence chain.

Define the record before choosing hardware

Write a one-sentence acceptance need, such as: “Capture the connector-pad region so another inspector can identify the part, locate the defect and compare it with the drawing.” That statement leads to five checks:

• Feature visibility: can the existing objectives and illumination resolve the defect before a camera is added?
• Field of view: does the image include enough context to locate the feature, not just an isolated magnified patch?
• Repeatability: can the stage, focus and lighting be returned to the same conditions?
• Port fit: is the camera intended for the eyepiece tube or a dedicated trinocular path?
• Record control: where will originals, annotations and calibration references be stored?

Build a repeatable inspection station

1. Fix the microscope and sample support so the view does not shift between operators.
2. Choose illumination that reveals the relevant surface without saturating reflective metal.
3. Create a reference view showing where the detailed image sits on the component or PCB.
4. Lock or record objective, zoom, adapter and camera settings.
5. Save an untouched image before drawing arrows, dimensions or pass/fail notes.
6. Name the file with part or batch, inspection stage, feature, date and revision.

When a customer complaint or first-article review needs a PCB defect image, the operator must be able to reproduce the view and identify the setup. If several inspectors rotate through one station, saved naming, lighting and calibration rules matter more than a larger megapixel claim.

Calibration is configuration-specific

Leica Microsystems explains in its measurement calibration guide that a digital microscope system is calibrated against a stage micrometer at a specific magnification and that the procedure must be repeated as magnification changes. Evident's camera-calibration guidance makes the same objective-by-object point.

A robust local procedure should identify:

• the reference and its status;
• the objective, zoom, adapter and camera resolution;
• the saved calibration name and date;
• a verification result before use;
• what triggers recalibration, such as a changed adapter, repair or moved optical component.

Eyepiece camera or dedicated industrial system?

Where the Scopeye EP2M can fit

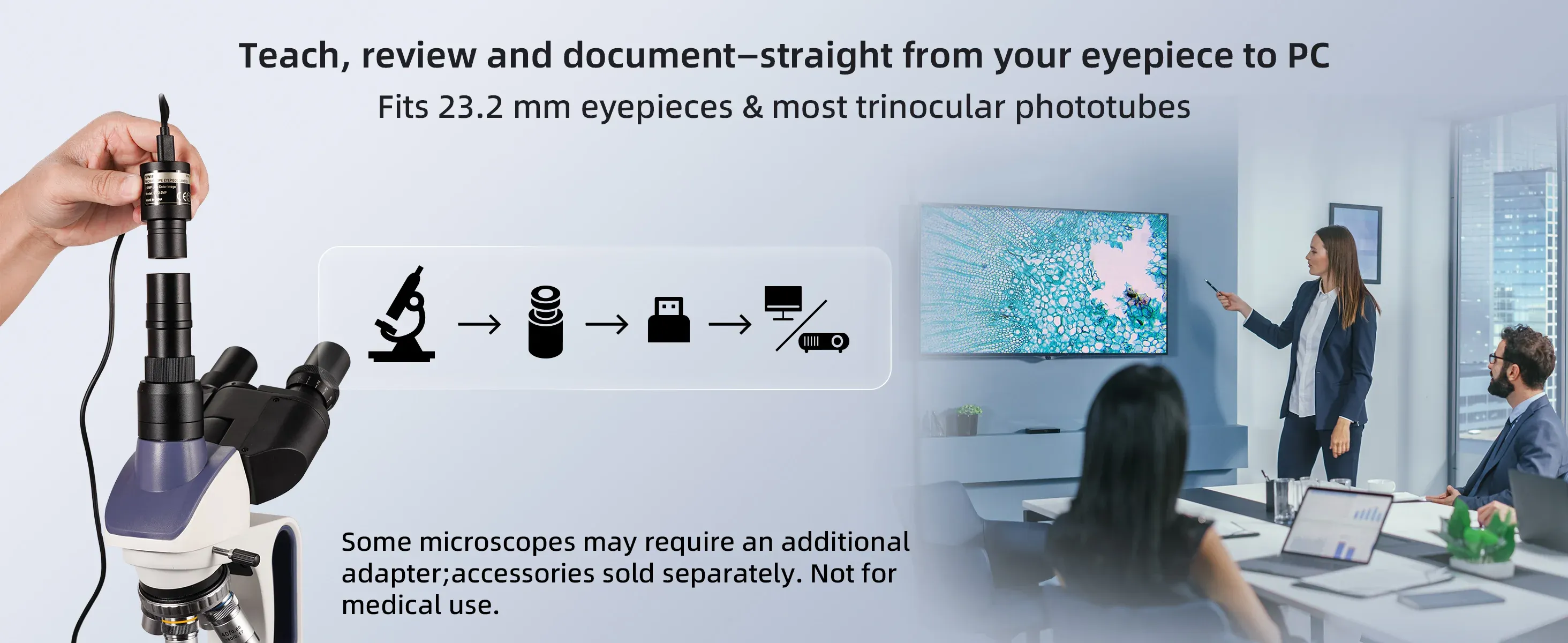

The Scopeye EP2M is a 2.0MP, 1080p USB eyepiece camera listed at £59.80. The cross-checked product facts cover a 23.2 mm eyepiece tube, 30/30.5 mm sleeves, Windows/Mac, UVC viewing and S-Viewer calibration with a separately purchased stage micrometer.

That makes it a candidate for low-cost screen sharing and routine image records on a compatible existing microscope. It is not an industrial measurement certificate, a machine-vision camera, a complete inspection microscope or evidence that a tolerance can be measured to a stated accuracy.

Minimum acceptance test before rollout

1. Choose one representative good part and one known defect.
2. Have two operators capture both without coaching.
3. Check whether each image contains enough context to locate the feature.
4. Verify a known distance at every configuration intended for measurement.
5. Open the saved files on the system used for reports and confirm annotations remain legible.
6. Document failure modes and decide when the optical view, another camera or external metrology is required.

For active PCB repair rather than formal QC documentation, use the separate microscope for electronics repair guide. It owns working distance and stereo-view decisions; this page owns controlled inspection records.
