Digital Microscope Camera UK: Choose, Fit and Set Up

A digital microscope camera is worth buying when it fits the optical port you already have, works on the computer you will actually use and produces the kind of record your course requires. For a student, check those three points before megapixels. If a lab report needs real dimensions or a scale bar, plan a stage-micrometer calibration for every objective and camera configuration rather than relying on nominal magnification.

A student facing a dissertation or lab-report deadline needs a dependable capture path, not a long list of premium features. The useful question is not “Which camera has the biggest number?” but “Can I obtain a focused, repeatable image on my own Mac or Windows machine and explain how its scale was established?”

Start with four requirements

1. Physical fit: identify the eyepiece tube, trinocular photo port or C-mount path. Do not assume that “universal” means every microscope.
2. Computer path: confirm the connector, any required USB-C adapter, camera permissions and a live-view application.
3. Image purpose: separate a screen illustration from quantitative measurement. The second needs calibration and records.
4. Budget: include a stage micrometer and any correct adapter rather than spending the whole allowance on the camera body.

Measure the microscope before ordering

Many full-size compound microscopes use a tube near the 23.2 mm standard, while stereo microscopes often use wider tubes. An AmScope UK eyepiece-camera specification illustrates the distinction by listing its camera barrel separately from 30 mm and 30.5 mm adapter sleeves.

Remove an eyepiece only when the microscope is stable and protected from dust. Measure the relevant diameter, record the microscope model and photograph the port. If the fit is uncertain, ask the supplier with those details. A loose sleeve can move between captures; a forced sleeve can damage the tube.

Mac and Windows are two separate checks

UVC describes a standard video-class connection. The practical benefit is that a compatible device can appear like a webcam in a capture application. Plugable's macOS walkthrough shows the general sequence: verify the USB device, grant camera permission and select it from Photo Booth. QuickTime can provide another simple live-view route.

If your everyday computer is a MacBook, confirm the UVC live view and the measurement-software workflow separately. A camera appearing in Photo Booth does not prove that every annotation, calibration or export function in a vendor application works on your version of macOS. Run the complete workflow before collecting irreplaceable samples.

How to create a defensible scale

Leica Microsystems' microscope calibration guide and Evident's camera calibration guide agree on the essential method:

1. Place a stage micrometer with a known scale on the microscope stage.
2. Focus it using the exact objective, adapter, camera resolution and zoom state intended for the specimen.
3. Match a software line to a known distance on the micrometer.
4. Save the calibration with a clear configuration name.
5. Repeat for every objective or optical configuration used.
6. Verify the saved calibration against the reference before measuring specimens.

A simple capture workflow for a lab report

1. Write down the sample, objective and illumination method before capture.
2. Focus visually, then switch to the camera view and make only the required adjustment.
3. Set exposure so highlights are not clipped; do not use heavy sharpening to invent edges.
4. Capture an unannotated original before adding labels or a scale bar.
5. Use the calibration that exactly matches the capture configuration.
6. Keep the original, annotated copy and calibration record together.

Where the EP2M fits a student budget

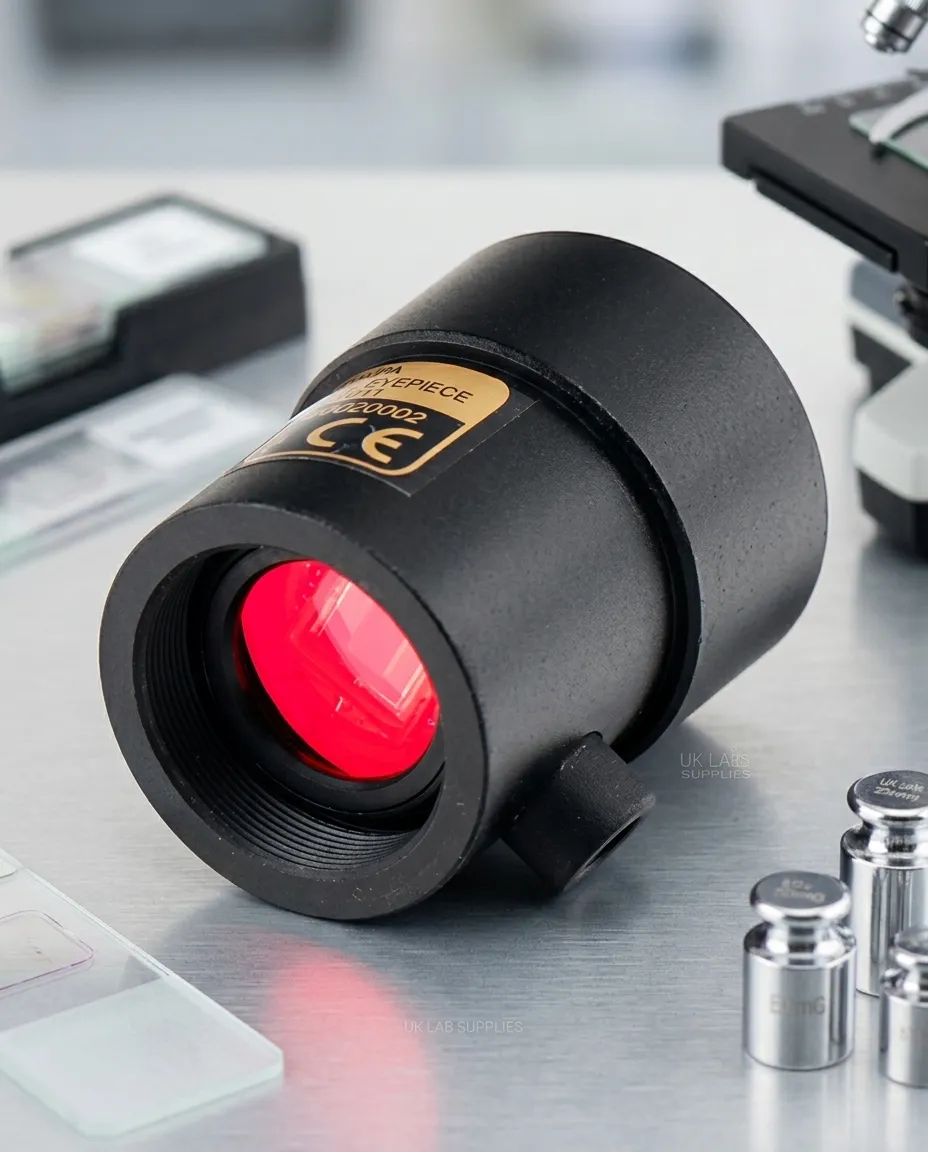

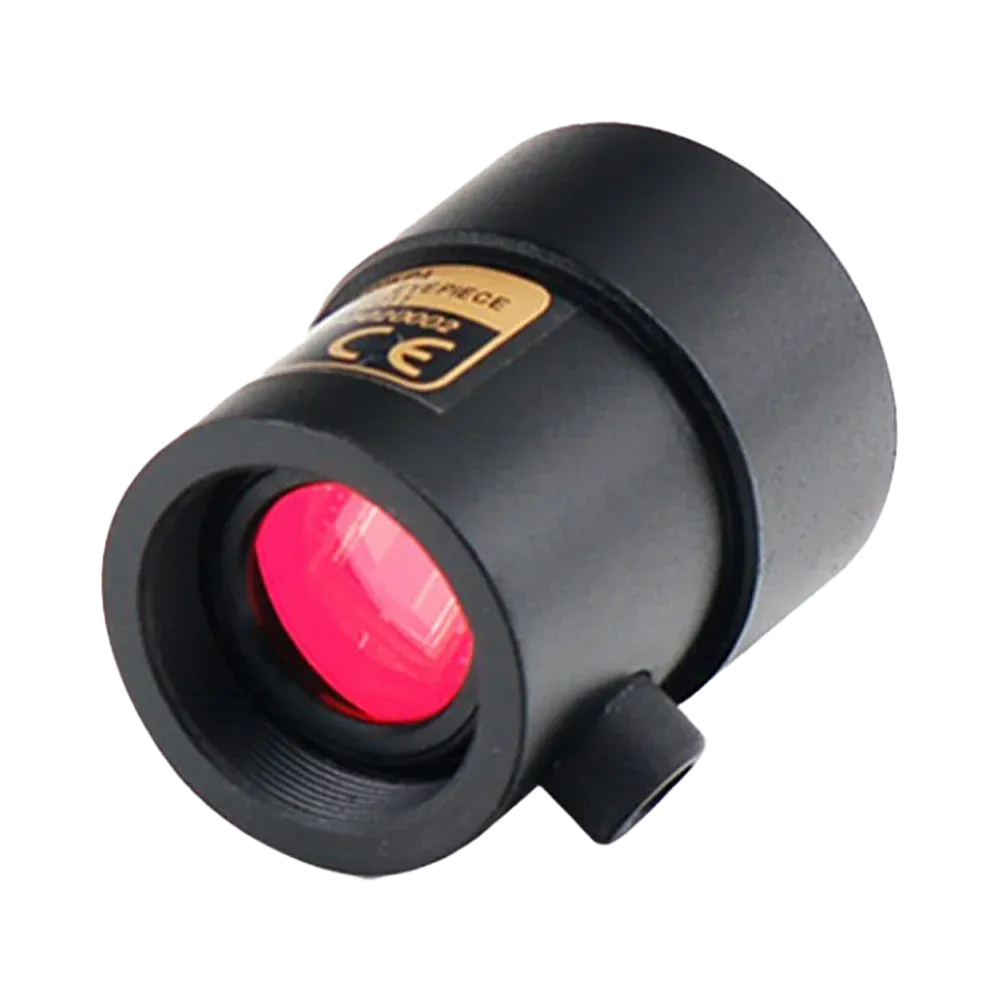

The Scopeye EP2M digital microscope camera is listed at £59.80. The facts shared by the current product page and Scopeye's persona record are 2.0MP, 1080p, USB, a 23.2 mm eyepiece fit, Windows/Mac support, UVC viewing and S-Viewer measurement tools. The 30 mm and 30.5 mm sleeves address wider tubes; a stage micrometer is sold separately.

That specification can suit routine screen capture and coursework records. It is not an assurance that every microscope will fit, every Mac software feature will work or every department will accept the output. A course handbook or lab technician is the authority on submission requirements.

When to use a different camera path

• Your microscope has a dedicated trinocular port whose optical interface needs a different adapter.
• Your work depends on fluorescence, long exposures, colour-critical imaging or features below what the complete optical system can resolve.
• You need a certified or validated measurement system rather than a general capture accessory.
• You need direct HDMI output with no computer.

For a classroom-specific connection plan, see the microscope camera for teaching guide. For formal QC records, the industrial inspection camera guide sets a stricter boundary.
